Custom-Manufactured Corrosion Coupons and Holders for Industrial Corrosion Monitoring！
At Shenyang Emt Piping Technology Co.,ltd., we are dedicated to delivering high-quality, precision-engineered solutions for corrosion monitoring systems. In this case, we successfully completed the production and quality inspection of a batch of corrosion coupons and coupon holders, custom-built for an international client in the oil and gas sector.
These units are specially designed for insertion-type corrosion monitoring systems used in pipelines, tanks, and pressurized vessels. Featuring excellent mechanical strength, chemical resistance, and field reliability, these corrosion coupons are ideal for long-term use in harsh industrial environments.
🔧 Product Overview
The project involved two major components:
Insertion-Type Corrosion Coupons with Threaded Holders
Protective Plug Assemblies with Epoxy Coating
These components work together to provide accurate, real-time assessment of corrosion rates inside process pipelines. The corrosion coupons are inserted directly into the flow medium, where they are exposed to the same conditions as the internal pipe wall — allowing for representative corrosion measurement.
📌 Component 1: Insertion-Type Corrosion Coupons

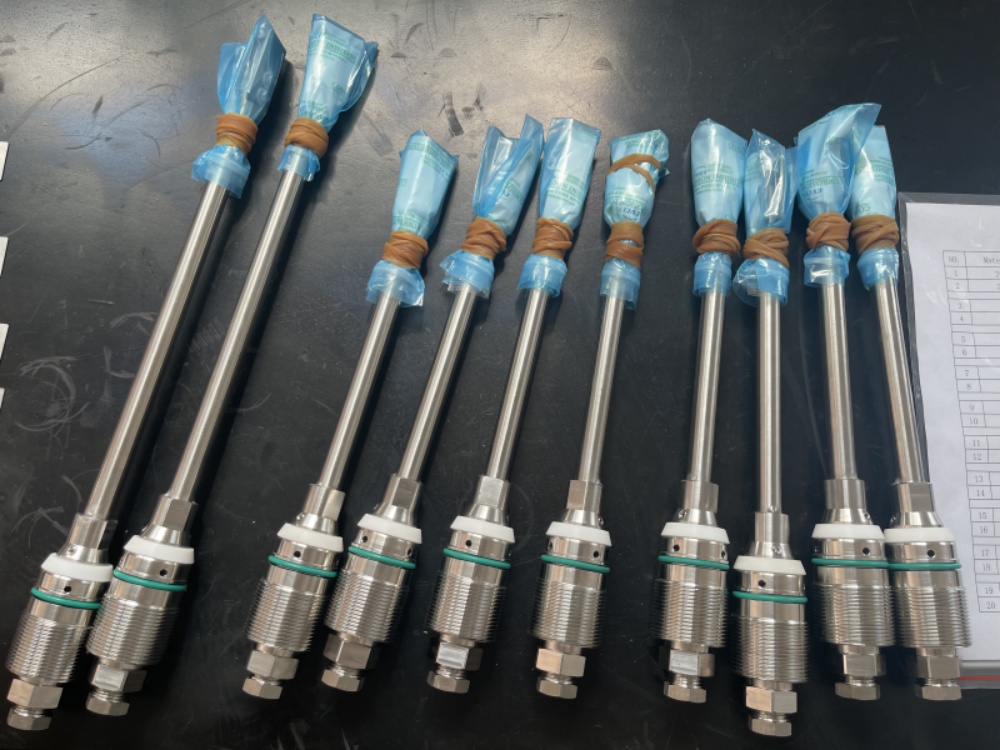

The first image shows our 316L stainless steel corrosion coupons, each integrated with a threaded holder for secure installation into a monitoring port.
Key Features:
Material: 316L Stainless Steel (customizable: 304, 410, Monel, Inconel, etc.)
Type: Insertion rod style with standard plug thread
Thread Size: NPT 3/4” (available in BSPT, BSPP, etc.)
Seal: Equipped with dual O-rings for leak-proof performance
Surface Finish: Machined to Ra ≤ 0.8μm for accurate exposure
Packaging: Each unit is individually capped and sealed to prevent contamination
These corrosion coupons are manufactured to exacting tolerances and are compatible with retrievable and fixed monitoring systems. All units are serialized for traceability and can be supplied with material certificates (MTC) upon request.
📌 Component 2: Protective Coated Plug Assemblies
The second image features our carbon steel plug assemblies, used to secure and protect the corrosion coupons during operation. These plugs are precision-machined from A105 carbon steel and finished with a durable blue epoxy coating for enhanced corrosion resistance.
Key Features:
Material: A105 Carbon Steel
Surface Coating: Dual-layer protection (phosphate + epoxy)
Color Coding: Blue top for easy identification in field operations
Thread Type: NPT/BSPT (customizable)
Application: Designed for high-pressure, high-temperature service
These plugs ensure a tight, secure fit and are capable of withstanding harsh field conditions such as offshore, desert, or chemical plant environments.
🔍 Quality Assurance
All components undergo a multi-stage quality control process, including:
Dimensional inspection with calibrated gauges
Thread verification using certified thread rings
Visual inspection for surface finish and coating integrity
Leak test and pressure test available upon request
Our facility is ISO 9001 certified, and we provide full documentation including COC, MTC, inspection reports, and packing lists per customer requirements.
